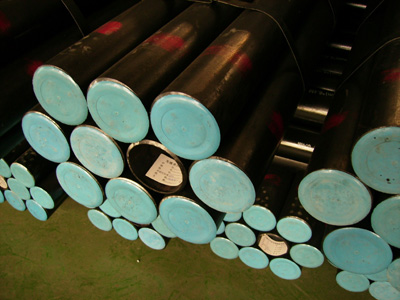

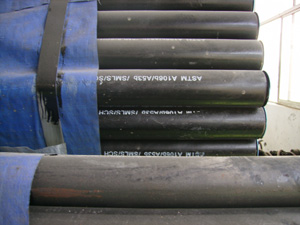

【产品名称】输送流体用无缝钢管 【点击数】10291 次 【打印】【订购此产品】
【产品说明】






壁厚表 ANSI/ASME B36.10M、B36.19M
Wall Thicknesses Schedule
公称通径
Norminal Pipe Size DN(in.)
外径
Outside Diameter
D
公称壁厚T
Norminal Wall Thickness
sch5s
sch10s
sch10
sch20
sch30
sch40s
STD
sch40
sch60
sch80s
XS
sch80
sch100
sch120
sch140
sch160
XXS
1/2
21.3
1.65
2.11
---
---
---
2.77
2.77
2.77
---
3.73
3.73
3.73
---
---
---
4.78
7.47
3/4
26.7
1.65
2.11
---
---
---
2.87
2.87
2.87
---
3.91
3.91
3.91
---
---
---
5.56
7.82
1
33.4
1.65
2.77
---
---
---
3.38
3.38
3.38
---
4.55
4.55
4.55
---
---
---
6.35
9.09
1-1/4
42.2
1.65
2.77
---
---
---
3.56
3.56
3.56
---
4.85
4.85
4.85
---
---
---
6.35
9.7
1-1/2
48.3
1.65
2.77
---
---
---
3.68
3.68
3.68
---
5.08
5.08
5.08
---
---
---
7.14
10.15
2
60.3
1.65
2.77
---
---
---
3.91
3.91
3.91
---
5.54
5.54
5.54
---
---
---
8.74
11.07
2-1/2
73
2.11
3.05
---
---
---
5.16
5.16
5.16
---
7.01
7.01
7.01
---
---
---
9.53
14.02
3
88.9
2.11
3.05
---
---
---
5.49
5.49
5.49
---
7.62
7.62
7.62
---
---
---
11.13
15.24
3-1/2
101.6
2.11
3.05
---
---
---
5.74
5.74
5.74
---
8.08
8.08
8.08
---
---
---
---
---
4
114.3
2.11
3.05
---
---
---
6.02
6.02
6.02
---
8.56
8.56
8.56
---
11.13
---

5
141.3
2.77
3.4
---
---
---
6.55
6.55
6.55
---
9.53
9.53
9.53
---
12.7
---

6
168.3
2.77
3.4
---
---
---
7.11
7.11
7.11
---
10.97
10.97
10.97
---
14.27
---

8
219.1
2.77
3.76
---
6.35
7.04
8.18
8.18
8.18
10.31
12.7
12.7
12.7
15.09
18.26
20.62

10
273.1
3.4
4.19
---
6.35
7.8
9.27
9.27
9.27
12.7
12.7
12.7
15.09
18.26
21.44
25.4
